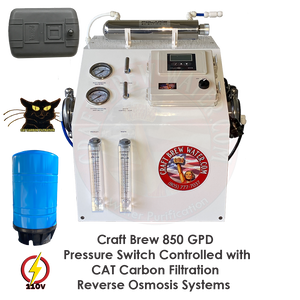

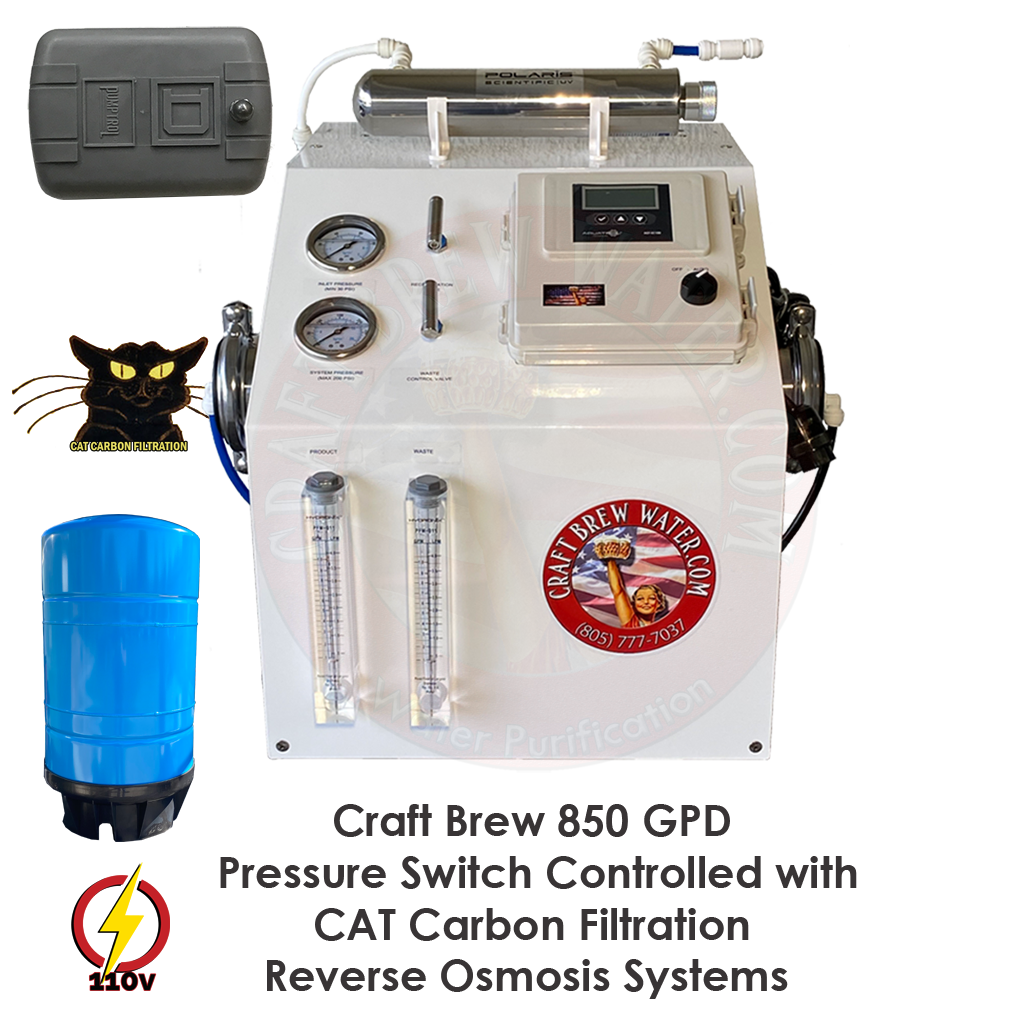

Craft Brew 850 GPD Pressure Switched Controlled Cat Carbon Reverse Osmosis System



Craft Brew 850 GPD Cat is a compact unit designed to provide productivity, automatic operation and low maintenance. The 850 comes loaded with options that are standard on all Craft Brew Reverse Osmosis Systems. Blending Valve to control your incoming brewing water, pressure switch controlled, waste recycle stainless steel needle valve and the final stage, UV protection. With Catalytic Carbon blocks to remove the Chloramines in your Brewing Water.

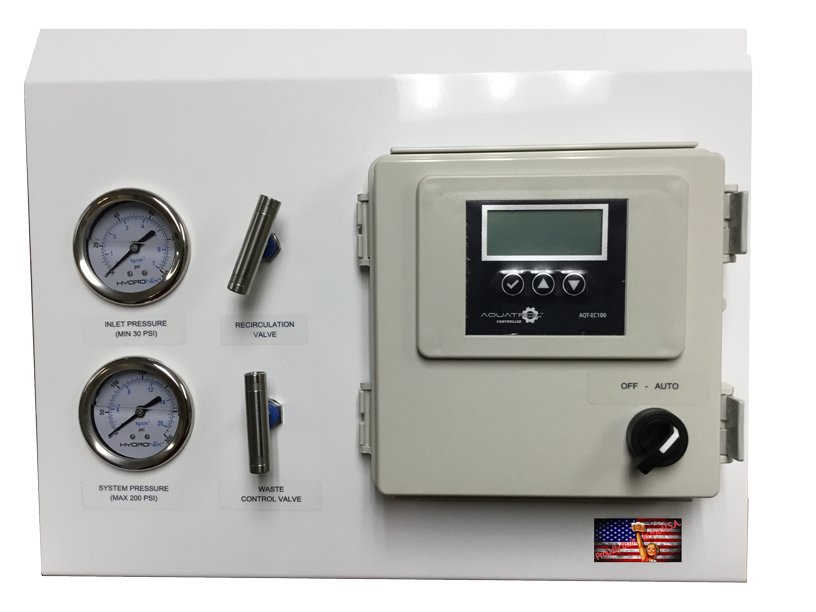

Automatic Controller: The Integrated Aquatrol controller provides automatic operation, for the following, for Optimum Performance.

  • - Low Pressure Switch shut-off
  • - Pressure Switch Controlled
  • - Automatic selector switch
  • - TDS sensor to monitor water quality
  • 20 Gallon Pressure Tank

Membrane Housing: 4” x 21” Stainless Steel
RO Membrane: (1) 4” x 21”
Pump: Brass Rotary vane type (coupled to 1725 RPM motor)
Stainless Steel Polaris 2 GPM UV
Incoming Solenoid Valve: Brass 120v 3/8”
Flow Meter: Panel Mount 0.1-1 GPM
Pressure Gauges: 100 & 300 psi Glycerin filled
Waste and Recycle Valve: 316 Stainless Steel Needle Valve
Filter Housings: (3) NSF 10”
Pre-filters:

  • - (1) 2.5” x 10” Polyspun 5 Micron Sediment
  • - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block

Post filter: - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block
Frame: Electrostatic Powder Coated
Easy Install Kit (Tubing, Connectors,etc.)



Specification Sheet Click Here

VIDEOS Below

Craft Brew 850 in the Box
Craft Brew 850 whats in the Box                         850 Startup Video
