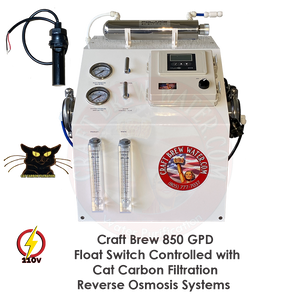

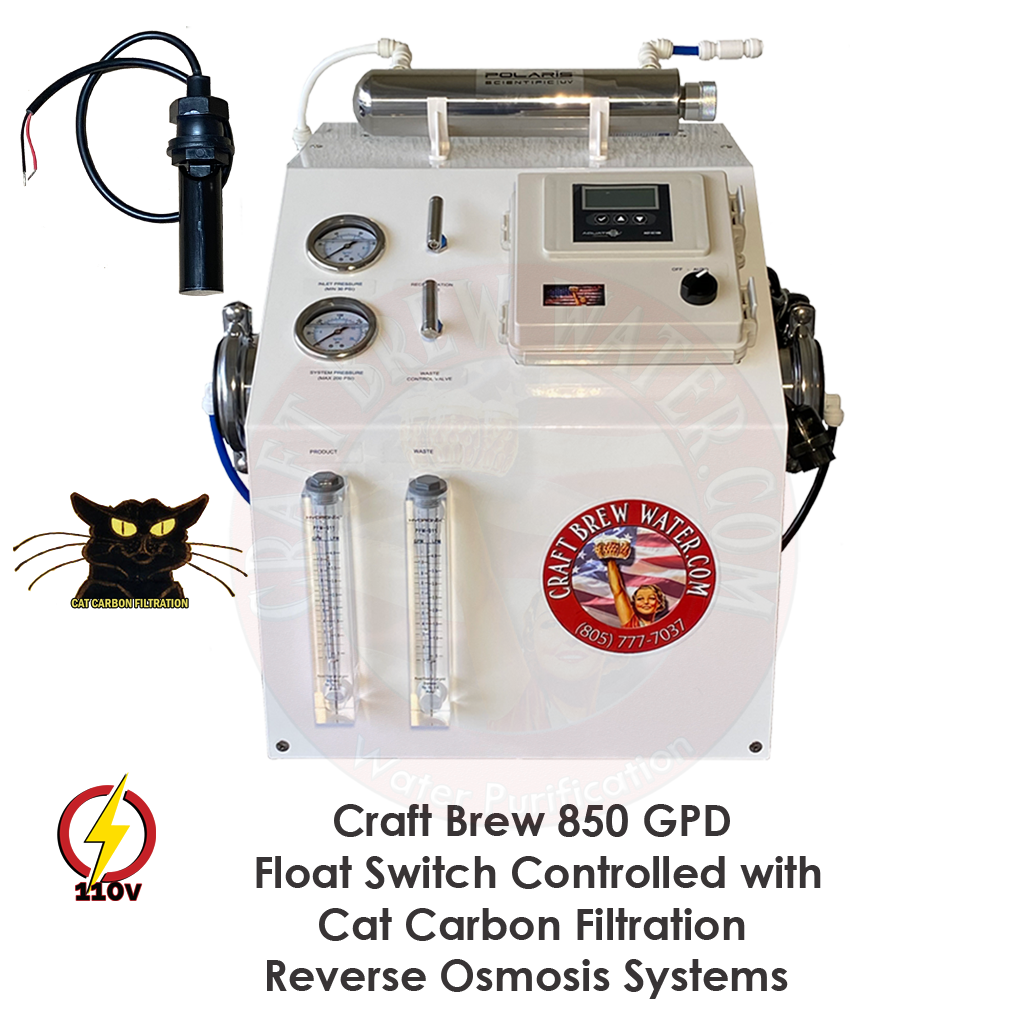

Craft Brew 850 GPD Float Switched Controlled Cat Carbon Reverse Osmosis System

Craft Brew 850 GPD Cat is a compact unit designed to provide productivity, automatic operation and low maintenance. The 850 comes loaded with options that are standard on all Craft Brew Reverse Osmosis Systems. Blending Valve to control your incoming brewing water, pressure switch or float switch controlled, waste recycle stainless steel needle valve and the final stage, UV protection. With Catalytic Carbon blocks to remove the Chloramines in your Brewing Water.

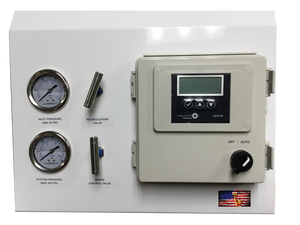

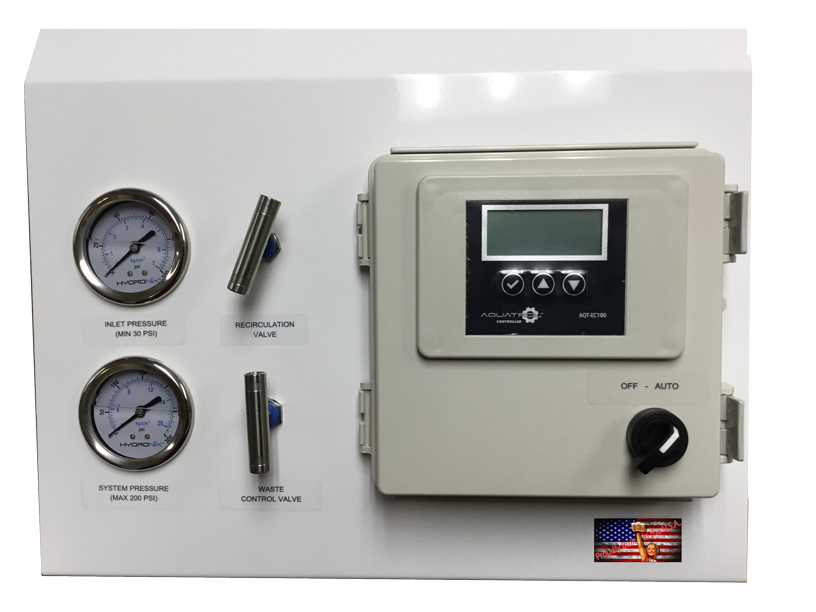

Automatic Controller: The Integrated Aquatrol controller provides automatic operation, for the following, for Optimum Performance.

• - Low Pressure Switch shut-off
• - Water Level Switch
• - Automatic selector switch
• - TDS sensor to monitor water quality

Membrane Housing: 4” x 21” Stainless Steel
RO Membrane: (1) 4” x 21”
Pump: Brass Rotary vane type (coupled to 1725 RPM motor)
Stainless Steel Polaris 2 GPM UV
Incoming Solenoid Valve: Brass 120v 3/8”
Flow Meter: Panel Mount 0.1-1 GPM
Pressure Gauges: 100 & 300 psi Glycerin filled
Waste and Recycle Valve: 316 Stainless Steel Needle Valve
Filter Housings: (3) NSF 10”
Pre-filters:

• - (1) 2.5” x 10” Polyspun 5 Micron Sediment
• - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block

Post filter: - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block
Frame: Electrostatic Powder Coated
Easy Install Kit (Tubing, Connectors,etc.)

Click Here For Replacement Filters



VIDEOS Below



Craft Brew 850 Startup
