Craft Brew 850 62 Stacker, Pressure Switch Controlled CAT Carbon Filtration Reverse Osmosis System

$3,301.23 USD $3,895.00 USD

| /

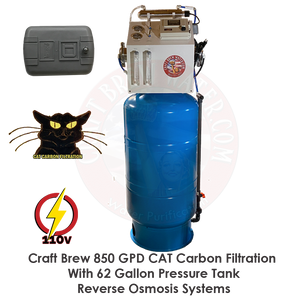

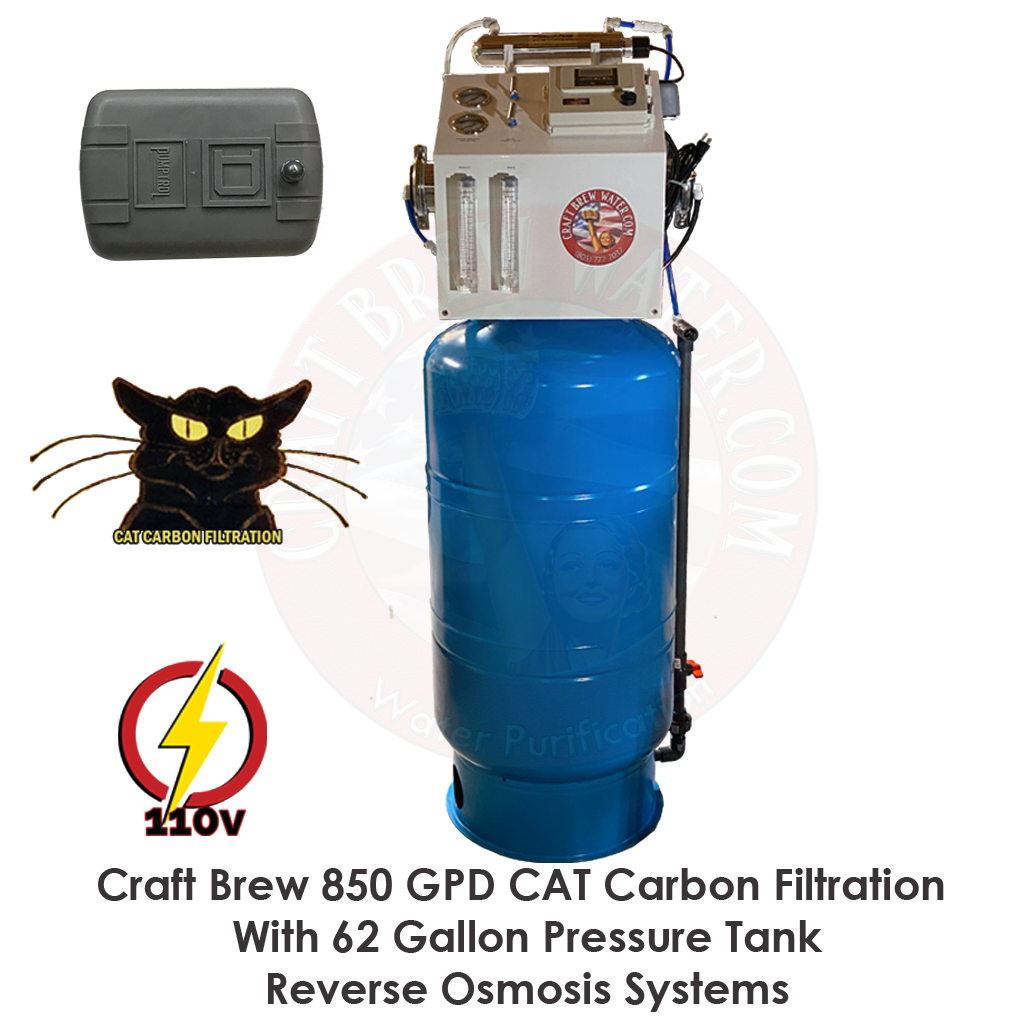

Craft Brew 850 62 Cat Stacker is a compact unit designed that sits on top of 62 gallon pressure tank with 40 gallon draw down, this provides productivity, automatic operation and low maintenance. The 850 comes loaded with options that are standard on all Craft Brew Reverse Osmosis Systems. Blending Valve to control your incoming brewing water, pressure switch or float switch controlled, waste recycle stainless steel needle valve and the final stage, UV protection. The system comes pre-loaded with Catalytic Filtration. This unit comes per-plumbed and ready for install. There are 3 connection for the unit, Feed, Product and Drain.

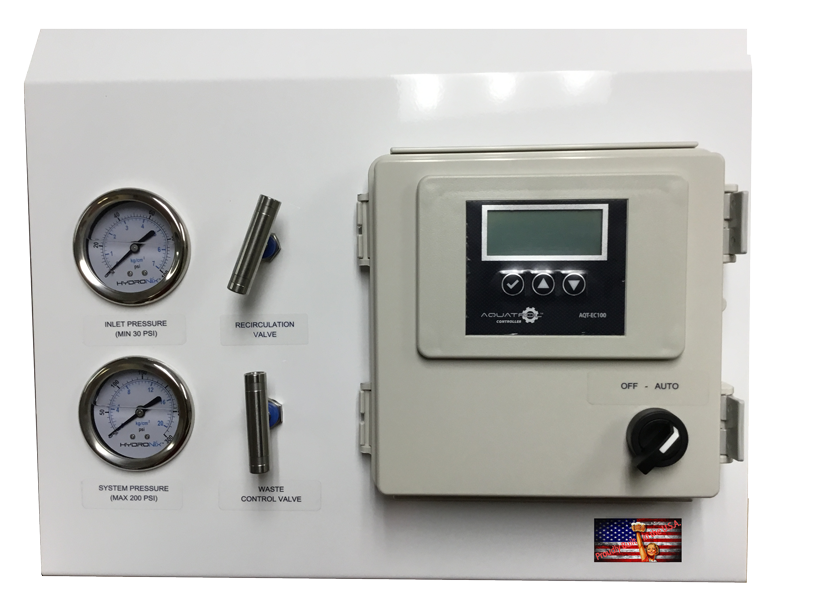

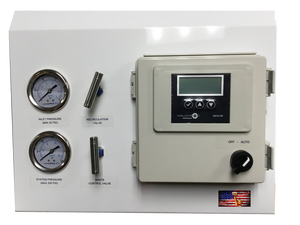

Automatic Controller: The Integrated Aquatrol controller provides automatic operation, for the following, for Optimum Performance.

  • - Low Pressure Switch shut-off
  • - Pressure Switched Controlled
  • - Automatic selector switch
  • - TDS sensor to monitor water quality

Membrane Housing: 4” x 21” Stainless Steel
RO Membrane: (1) 4” x 21”
Pump: Brass Rotary vane type (coupled to 1725 RPM motor)
Stainless Steel Polaris 2 GPM UV
Incoming Solenoid Valve: Brass 120v 3/8”
Flow Meter: Panel Mount 0.1-1 GPM
Pressure Gauges: 100 & 300 psi Glycerin filled
Waste and Recycle Valve: 316 Stainless Steel Needle Valve
Filter Housings: (3) NSF 10”
62 Gallon Pressure Tank with 40 gallon draw down.
Pre-filters:

  • - (1) 2.5” x 10” Polyspun 5 Micron Sediment
  • - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block

Post filter: - (1) 2.5” x 10” 5 Micron Catalytic Carbon Block
Frame: Electrostatic Powder Coated
Easy Install Kit (Tubing, Connectors,etc.)



Specification Sheet Click Here

VIDEOS Below

Craft Brew 850 in the Box
Craft Brew 850 whats in the Box                         850 Startup Video


Craft Brew 850 Startup
